MLflow Recipes (experimental)

MLflow Recipes (previously known as MLflow Pipelines) is a framework that enables data scientists to quickly develop high-quality models and deploy them to production. Compared to ad-hoc ML workflows, MLflow Recipes offers several major benefits:

  • Get started quickly: Predefined templates for common ML tasks, such as regression modeling, enable data scientists to get started quickly and focus on building great models, eliminating the large amount of boilerplate code that is traditionally required to curate datasets, engineer features, train & tune models, and package models for production deployment.

  • Iterate faster: The intelligent recipe execution engine accelerates model development by caching results from each step of the process and re-running the minimal set of steps as changes are made.

  • Easily ship to production: The modular, git-integrated recipe structure dramatically simplifies the handoff from development to production by ensuring that all model code, data, and configurations are easily reviewable and deployable by ML engineers.

Quickstarts

Prerequisites

MLflow Recipes is available as an extension of the MLflow Python library. You can install MLflow Recipes as follows:

  • Local: Install MLflow from PyPI: pip install mlflow. Note that MLflow Recipes requires Make, which may not be preinstalled on some Windows systems. Windows users must install Make before using MLflow Recipes. For more information about installing Make on Windows, see https://gnuwin32.sourceforge.net/install.html.

  • Databricks: Install MLflow Recipes from a Databricks Notebook by running %pip install mlflow, or install MLflow Recipes on a Databricks Cluster by following the PyPI library installation instructions here and specifying the mlflow package string.

    Note

    Databricks Runtime version 11.0 or greater is required in order to install MLflow Recipes on Databricks.

NYC taxi fare prediction example

The NYC taxi fare prediction example uses the MLflow Recipes Regression Template to develop and score models on the NYC Taxi (TLC) Trip Record Dataset. You can run the example locally by installing MLflow Recipes and running the Jupyter example regression notebook. You can run the example on Databricks by cloning the example repository with Databricks Repos and running the Databricks example regression notebook.

To build and score models for your own use cases, we recommend using the MLflow Recipes Regression Template. For more information, see the Regression Template reference guide.

Classification problem example

The Classification problem example uses the MLflow Recipes Classification Template to develop and score models on the Wine Quality Dataset. You can run the example locally by installing MLflow Recipes and running the Jupyter example classification notebook. You can run the example on Databricks by cloning the example repository with Databricks Repos and running the Databricks example classification notebook.

To build and score models for your own use cases, we recommend using the MLflow Recipes Classification Template. For more information, see the Classification Template reference guide.

Key concepts

  • Steps: A Step represents an individual ML operation, such as ingesting data, fitting an estimator, evaluating a model against test data, or deploying a model for real-time scoring. Each Step accepts a collection of well-defined inputs and produce well-defined outputs according to user-defined configurations and code.

  • Recipes: A Recipe is an ordered composition of Steps used to solve an ML problem or perform an MLOps task, such as developing a regression model or performing batch model scoring on production data. MLflow Recipes provides APIs and a CLI for running recipes and inspecting their results.

  • Templates: A Recipe Template is a git repository with a standardized, modular layout containing all of the customizable code and configurations for a Recipe. Configurations are defined in YAML format for easy review via the recipe.yaml file and Profile YAML files. Each template also defines its requirements, data science notebooks, and tests. MLflow Recipes includes predefined templates for a variety of model development and MLOps tasks.

  • Profiles: Profiles contain user-specific or environment-specific configurations for a Recipe, such as the particular set of hyperparameters being tuned by a data scientist in development or the MLflow Model Registry URI and credentials used to store production-worthy models. Each profile is represented as a YAML file in the Recipe Template (e.g. local.yaml and databricks.yaml).

  • Step Cards: Step Cards display the results produced by running a Step, including dataset profiles, model performance & explainability plots, overviews of the best model parameters found during tuning, and more. Step Cards and their corresponding dataset and model information are also logged to MLflow Tracking.

Usage

Model development workflow

The general model development workflow for using MLflow Recipes is as follows:

  1. Clone a Recipe Template git repository corresponding to the ML problem that you wish to solve. Follow the template’s README file for template-specific instructions.

    git clone https://github.com/mlflow/recipes-regression-template

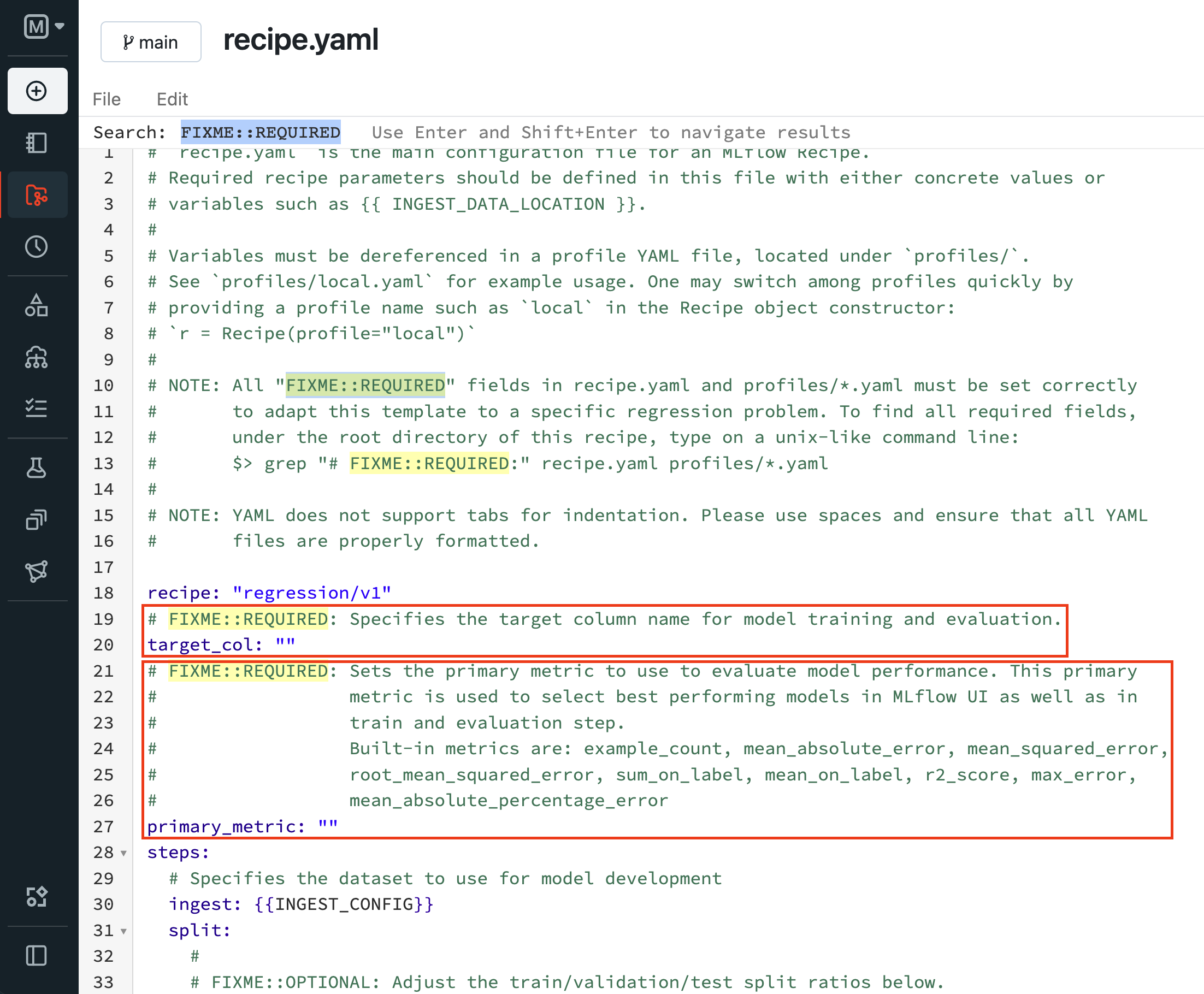

  2. Edit required fields marked by FIXME::REQUIRED comments in recipe.yaml and profiles/*.yaml. The recipe is runnable once all required fields are filled with proper values. You may proceed to step 3 if this is the first time going through this step. Otherwise, continue to edit the YAML config files as well as steps/*.py files, filling out areas marked by FIXME::OPTIONAL as you see fit to customize the recipe steps to your ML problem for better model performance.

    _images/recipes_databricks_fixme.png
  3. Run the recipe by selecting a desired profile. Profiles are used to quickly switch environment specific recipe settings, such as ingest data location. When a recipe run completes, you may inspect the run results. MLflow Recipes creates and displays an interactive Step Card with the results of the last executed step. Each Recipe Template also includes a Databricks Notebook and a Jupyter Notebook for running the recipe and inspecting its results.

    Example API and CLI workflows for running the Regression Recipe and inspecting results. Note that recipes must be run from within their corresponding git repositories.
    import os
    from mlflow.recipes import Recipe
    from mlflow.pyfunc import PyFuncModel

    os.chdir("~/recipes-regression-template")
    regression_recipe = Recipe(profile="local")
    # Run the full recipe
    regression_recipe.run()
    # Inspect the model training results
    regression_recipe.inspect(step="train")
    # Load the trained model
    regression_model_recipe: PyFuncModel = regression_recipe.get_artifact("model")

    git clone https://github.com/mlflow/recipes-regression-template
    cd recipes-regression-template
    # Run the full recipe
    mlflow recipes run --profile local
    # Inspect the model training results
    mlflow recipes inspect --step train --profile local
    # Inspect the resulting model performance evaluations
    mlflow recipes inspect --step evaluate --profile local

    _images/recipes_evaluate_step_card.png

    An example step card produced by running the evaluate step of the MLflow Regression Recipe. The step card results indicate that the trained model passed all performance validations and is ready for registration with the MLflow Model Registry.

    _images/recipes_databricks_logged_artifacts.png

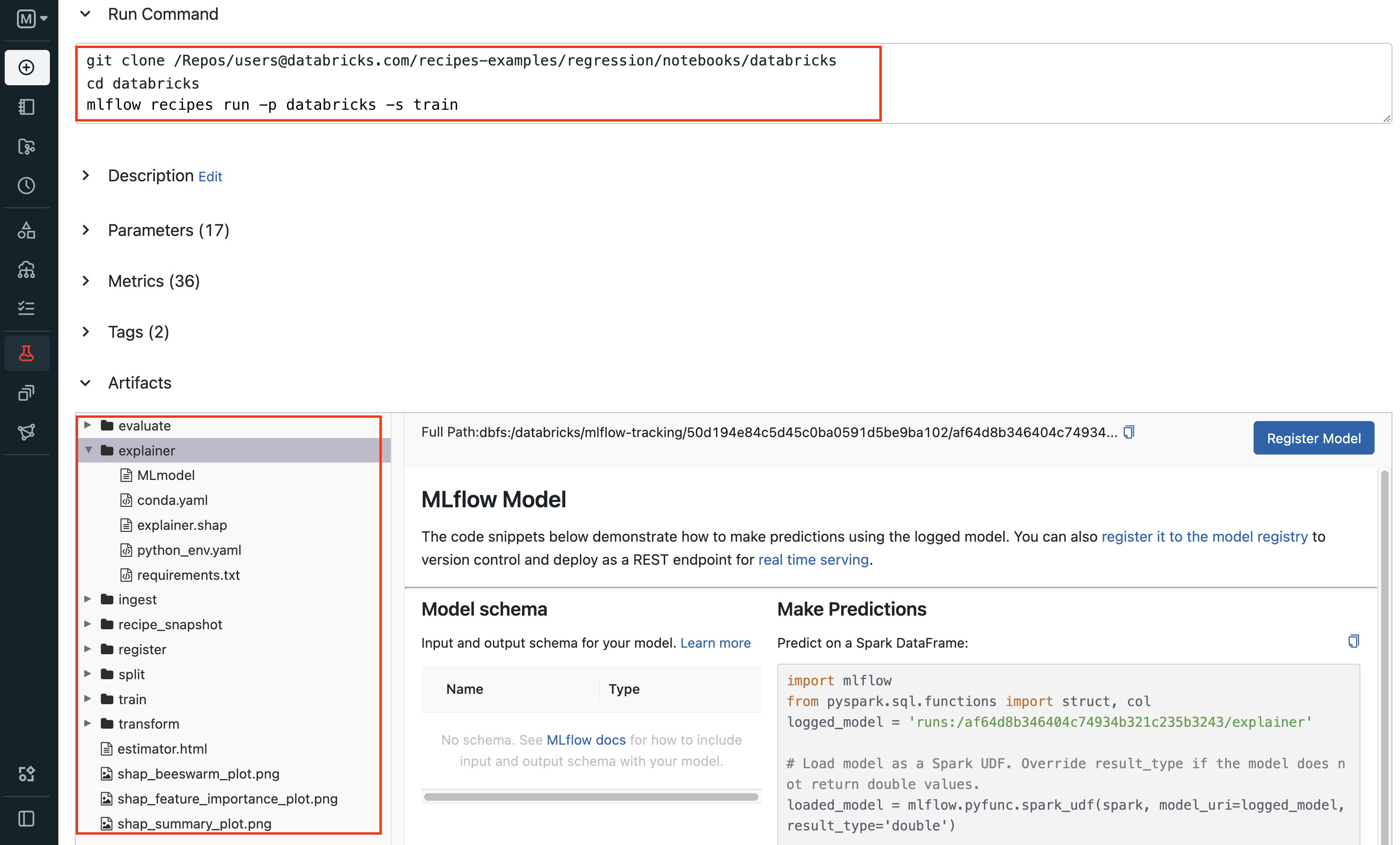

    An example MLflow run view page, showing artifacts logged from the Recipe’s steps.

    _images/recipes_databricks_notebook_ui.png

    Example recipe run from the Databricks Notebook included in the MLflow Recipes Regression Template.

    Note

    Data profiling is often best viewed with “quantiles” mode. To switch it on, on the Facet data profile, find Chart to show, click the selector below, and choose Quantiles.

  4. Iterate over step 2 and 3: make changes to an individual step, and test them by running the step and observing the results it produces. Use Recipe.inspect() to visualize the overall Recipe dependency graph and artifacts each step produces. Use Recipe.get_artifact() to further inspect individual step outputs in a notebook.

    MLflow Recipes intelligently caches results from each Recipe Step, ensuring that steps are only executed if their inputs, code, or configurations have changed, or if such changes have occurred in dependent steps. Once you are satisfied with the results of your changes, commit them to a branch of the Recipe Repository in order to ensure reproducibility, and share or review the changes with your team.

    _images/recipes_databricks_dag.png

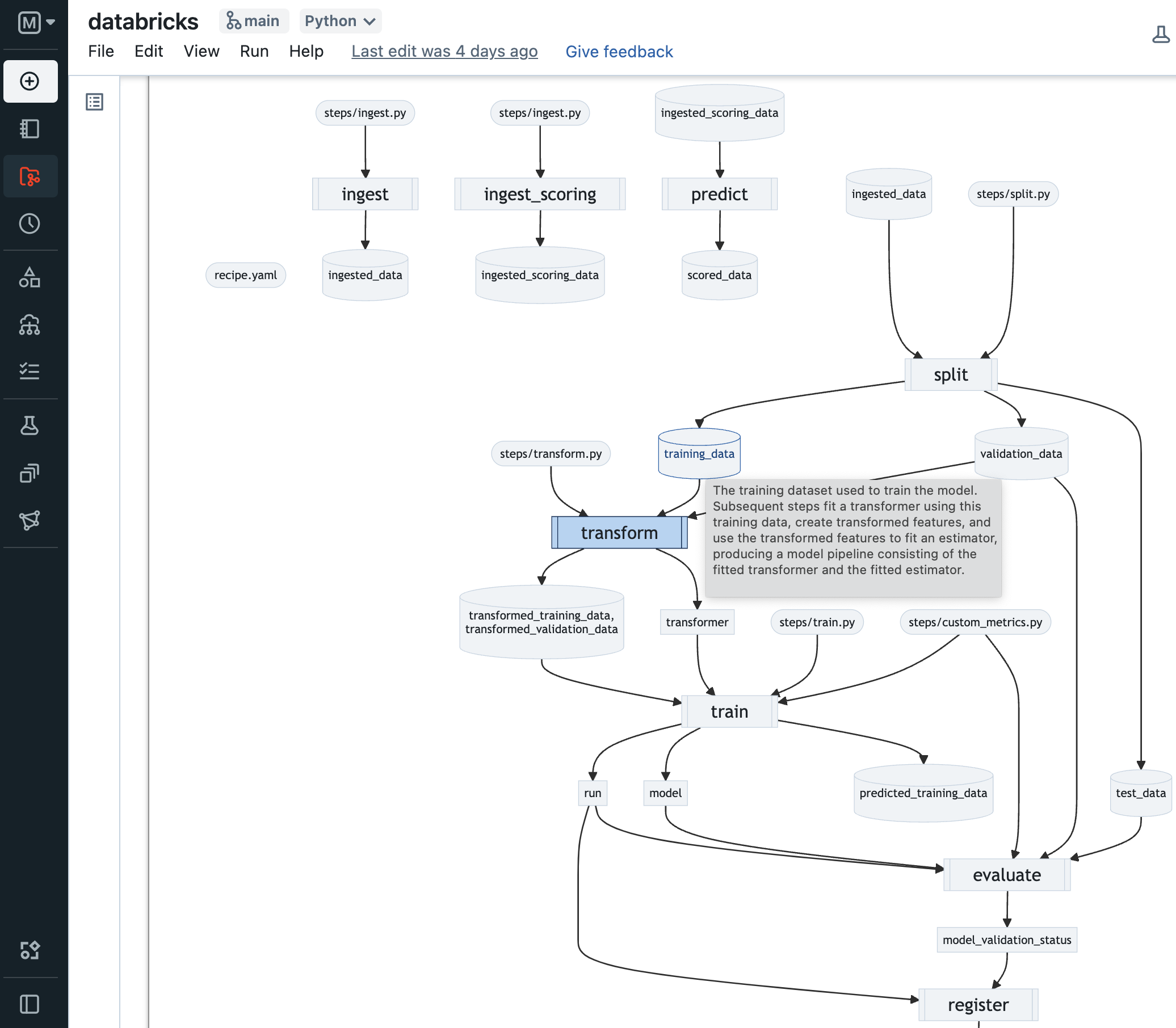

    Example Recipe.inspect() output, showing the dependency graph of recipe steps and artifacts each step produces.

    Note

    Before testing changes in a staging or production environment, it is recommended that you commit the changes to a branch of the Recipe Repository to ensure reproducibility.

    Note

    By default, MLflow Recipes caches results from each Recipe Step within the .mlflow subdirectory of the home folder on the local filesystem. The MLFLOW_RECIPES_EXECUTION_DIRECTORY environment variable can be used to specify an alternative location for caching results.

Development environments

We recommend using one of the following environment configurations to develop models with MLflow Recipes:

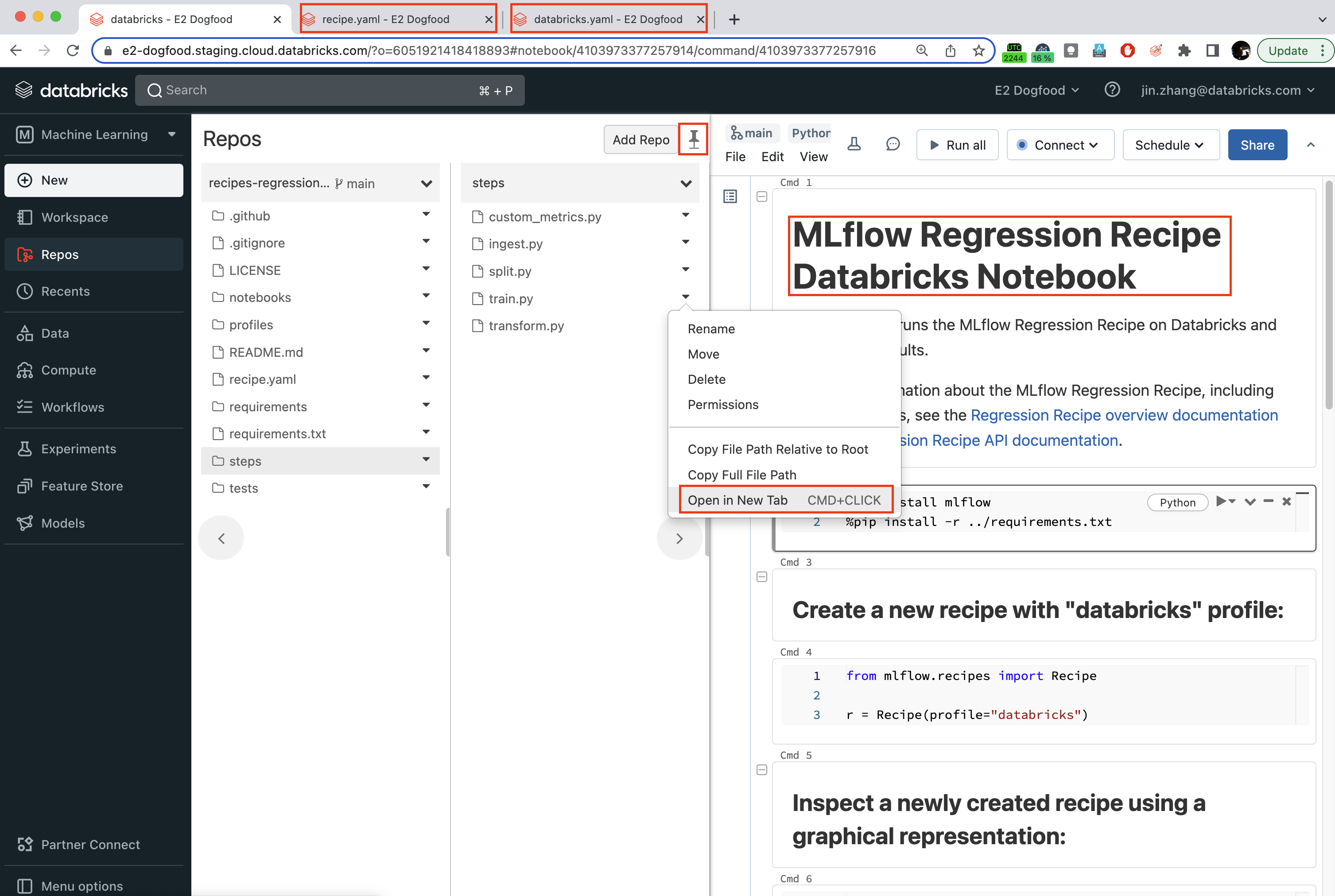

[Databricks]
  • Edit YAML config and Python files in Databricks Repos. Open separate browser tabs for each file module that you wish to modify. For example, one for the recipe config file recipe.yaml, one for the profile config file profile/databricks.yaml, one for the driver notebook notebooks/databricks.py, and one for the current step (e.g. train) under development steps/train.py.

  • Use notebooks/databricks.py as the driver to run recipe steps and inspect its output.

  • Pin the workspace browser for easy file navigation.

_images/recipes_databricks_ui.png
[Local with Jupyter Notebook]
  • Use notebooks/jupyter.ipynb as the driver to run recipe steps and inspect its output.

  • Edit recipe.yaml, steps/*.py and profiles/*.yaml accordingly with an editor of your choice.

  • To run the entire recipe, either run notebooks/jupyter.ipynb or on commandline, invoke mlflow recipes run --profile local (change the current working directory to the project root first).

[Edit locally with IDE (VSCode) and run on Databricks]
  • Edit files on your local machine with VSCode and Jupyter plugin.

  • Use dbx to sync them to Databricks Repos as demonstrated below.

  • On Databricks, use the notebooks/databricks.py notebook as the driver to run recipe steps and inspect their outputs.

Example workflow for efficiently editing a recipe on a local machine and synchronizing changes to Databricks Repos
# Install the Databricks CLI, which is used to remotely access your Databricks Workspace
pip install databricks-cli
# Configure remote access to your Databricks Workspace
databricks configure
# Install dbx, which is used to automatically sync changes to and from Databricks Repos
pip install dbx
# Clone the MLflow Recipes Regression Template
git clone https://github.com/mlflow/recipes-regression-template
# Enter the MLflow Recipes Regression Template directory and configure dbx within it
cd recipes-regression-template
dbx configure
# Use dbx to enable syncing from the repository directory to Databricks Repos
dbx sync repo -d recipes-regression-template
# Iteratively make changes to files in the repository directory and observe that they
# are automatically synced to Databricks Repos

Recipe Templates

MLflow Recipes currently offers the following predefined templates that can be easily customized to develop and deploy high-quality, production-ready models for your use cases:

Additional recipes for a variety of ML problems and MLOps tasks are under active development.

Detailed reference guide

Template structure

Recipe Templates are git repositories with a standardized, modular layout. The following example provides an overview of the recipe repository structure. It is adapted from the MLflow Recipes Regression Template.

├── recipe.yaml
├── requirements.txt
├── steps
│   ├── ingest.py
│   ├── split.py
│   ├── transform.py
│   ├── train.py
│   ├── custom_metrics.py
├── profiles
│   ├── local.yaml
│   ├── databricks.yaml
├── tests
│   ├── ingest_test.py
│   ├── ...
│   ├── train_test.py
│   ├── ...

The main components of the Recipe Template layout, which are common across all recipes, are:

  • recipe.yaml: The main recipe configuration file that declaratively defines the attributes and behavior of each recipe step, such as the input dataset to use for training a model or the performance criteria for promoting a model to production. For reference, see the recipe.yaml configuration file from the MLflow Recipes Regression Template.

  • requirements.txt: A pip requirements file specifying packages that must be installed in order to run the recipe.

  • steps: A directory containing Python code modules used by the recipe steps. For example, the MLflow Recipes Regression Template defines the estimator type and parameters to use when training a model in steps/train.py and defines custom metric computations in steps/custom_metrics.py.

Shown below is an example recipe.yaml configuration file adapted from the MLflow Recipes Regression Template. recipe.yaml is the main configuration file for a recipe containing aggregated configurations for all recipe steps; Profile-based substitutions and overrides are supported using Jinja2 templating syntax.
recipe: "regression/v1"
target_col: "fare_amount"
primary_metrics: "root_mean_squared_error"
steps:
  ingest: {{INGEST_CONFIG}}
  split:
    split_ratios: {{SPLIT_RATIOS|default([0.75, 0.125, 0.125])}}
  transform:
    transformer_method: transformer_fn
  train:
    using: custom
    estimator_method: estimator_fn
  evaluate:
    validation_criteria:
      - metric: root_mean_squared_error
        threshold: 10
      - metric: weighted_mean_squared_error
        threshold: 20
  register:
    allow_non_validated_model: false
custom_metrics:
  - name: weighted_mean_squared_error
    function: weighted_mean_squared_error
    greater_is_better: False

Working with profiles

A profile is a collection of customizations for the configurations defined in the recipe’s main recipe.yaml file. Profiles are defined as YAML files within the recipe repository’s profiles directory. When running a recipe or inspecting its results, the desired profile is specified as an API or CLI argument.

Example API and CLI workflows for running recipes with different profile customizations
import os
from mlflow.recipes import Recipe

os.chdir("~/recipes-regression-template")
# Run the regression recipe to train and evaluate the performance of an ElasticNet regressor
regression_recipe_local_elasticnet = Recipe(profile="local-elasticnet")
regression_recipe_local_elasticnet.run()
# Run the recipe again to train and evaluate the performance of an SGD regressor
regression_recipe_local_sgd = Recipe(profile="local-sgd")
regression_recipe_local_sgd.run()
# After finding the best model type and updating the 'shared-workspace' profile accordingly,
# run the recipe again to retrain the best model in a workspace where teammates can view it
regression_recipe_shared = Recipe(profile="shared-workspace")
regression_recipe_shared.run()
git clone https://github.com/mlflow/recipes-regression-template
cd recipes-regression-template
# Run the regression recipe to train and evaluate the performance of an ElasticNet regressor
mlflow recipes run --profile local-elasticnet
# Run the recipe again to train and evaluate the performance of an SGD regressor
mlflow recipes run --profile local-sgd
# After finding the best model type and updating the 'shared-workspace' profile accordingly,
# run the recipe again to retrain the best model in a workspace where teammates can view it
mlflow recipes run --profile shared-workspace

The following profile customizations are supported:

  • overrides
    • If the recipe.yaml configuration file defines a Jinja2-templated attribute with a default value, a profile can override the value by mapping the attribute to a different value using YAML dictionary syntax. Note that override values may have arbitrarily nested types (e.g. lists, dictionaries, lists of dictionaries, …).

      Example recipe.yaml configuration file defining an overrideable RMSE_THRESHOLD attribute for validating model performance with a default value of 10
      steps:
        evaluate:
          validation_criteria:
            - metric: root_mean_squared_error
              # The maximum RMSE value on the test dataset that a model can have
              # to be eligible for production deployment
              threshold: {{RMSE_THRESHOLD|default(10)}}

      Example prod.yaml profile that overrides RMSE_THRESHOLD with a custom value to more aggressively validate model quality for production
      RMSE_THRESHOLD: 5.2

  • substitutions
    • If the recipe.yaml configuration file defines a Jinja2-templated attribute without a default value, a profile must map the attribute to a specific value using YAML dictionary syntax. Note that substitute values may have arbitrarily nested types (e.g. lists, dictionaries, lists of dictionaries, …).

      Example recipe.yaml configuration file defining a DATASET_INFO variable whose value must be specified by the selected recipe profile
      data:
        # Specifies the dataset to use for model training
        {{DATASET_INFO}}

      Example dev.yaml profile that provides a value for DATASET_INFO corresponding to a small dataset for development purposes
      DATASET_INFO:
          location: ./data/taxi-small.parquet
          format: parquet

  • additions
    • If the recipe.yaml configuration file does not define a particular attribute, a profile may define it instead. This capability is helpful for providing values of optional configurations that, if unspecified, a recipe would otherwise ignore.

      Example local.yaml profile that specifies a sqlite-based MLflow Tracking store for local testing on a laptop
      experiment:
        tracking_uri: "sqlite:///metadata/mlflow/mlruns.db"
        name: "sklearn_regression_experiment"
        artifact_location: "./metadata/mlflow/mlartifacts"


Warning

If the recipe.yaml configuration file defines an attribute that cannot be overridden or substituted (i.e. because its value is not specified using Jinja2 templating syntax), a profile must not define it. Defining such an attribute in a profile produces an error.
