MLflow Model Registry

The MLflow Model Registry component is a centralized model store, set of APIs, and UI, to collaboratively manage the full lifecycle of an MLflow Model. It provides model lineage (which MLflow experiment and run produced the model), model versioning, stage transitions (for example from staging to production), and annotations.


The Model Registry introduces a few concepts that describe and facilitate the full lifecycle of an MLflow Model.


An MLflow Model is created from an experiment or run that is logged with one of the model flavor’s mlflow.<model_flavor>.log_model() methods. Once logged, this model can then be registered with the Model Registry.

Registered Model

An MLflow Model can be registered with the Model Registry. A registered model has a unique name, contains versions, associated transitional stages, model lineage, and other metadata.

Model Version

Each registered model can have one or many versions. When a new model is added to the Model Registry, it is added as version 1. Each new model registered to the same model name increments the version number.

Model Stage

Each distinct model version can be assigned one stage at any given time. MLflow provides predefined stages for common use-cases such as Staging, Production or Archived. You can transition a model version from one stage to another stage.

Annotations and Descriptions

You can annotate the top-level model and each version individually using Markdown, including description and any relevant information useful for the team such as algorithm descriptions, dataset employed or methodology.

Model Registry Workflows

If running your own MLflow server, you must use a database-backed backend store in order to access the model registry via the UI or API. See here for more information.

Before you can add a model to the Model Registry, you must log it using the log_model methods of the corresponding model flavors. Once a model has been logged, you can add, modify, update, transition, or delete model in the Model Registry through the UI or the API.

UI Workflow

Registering a Model

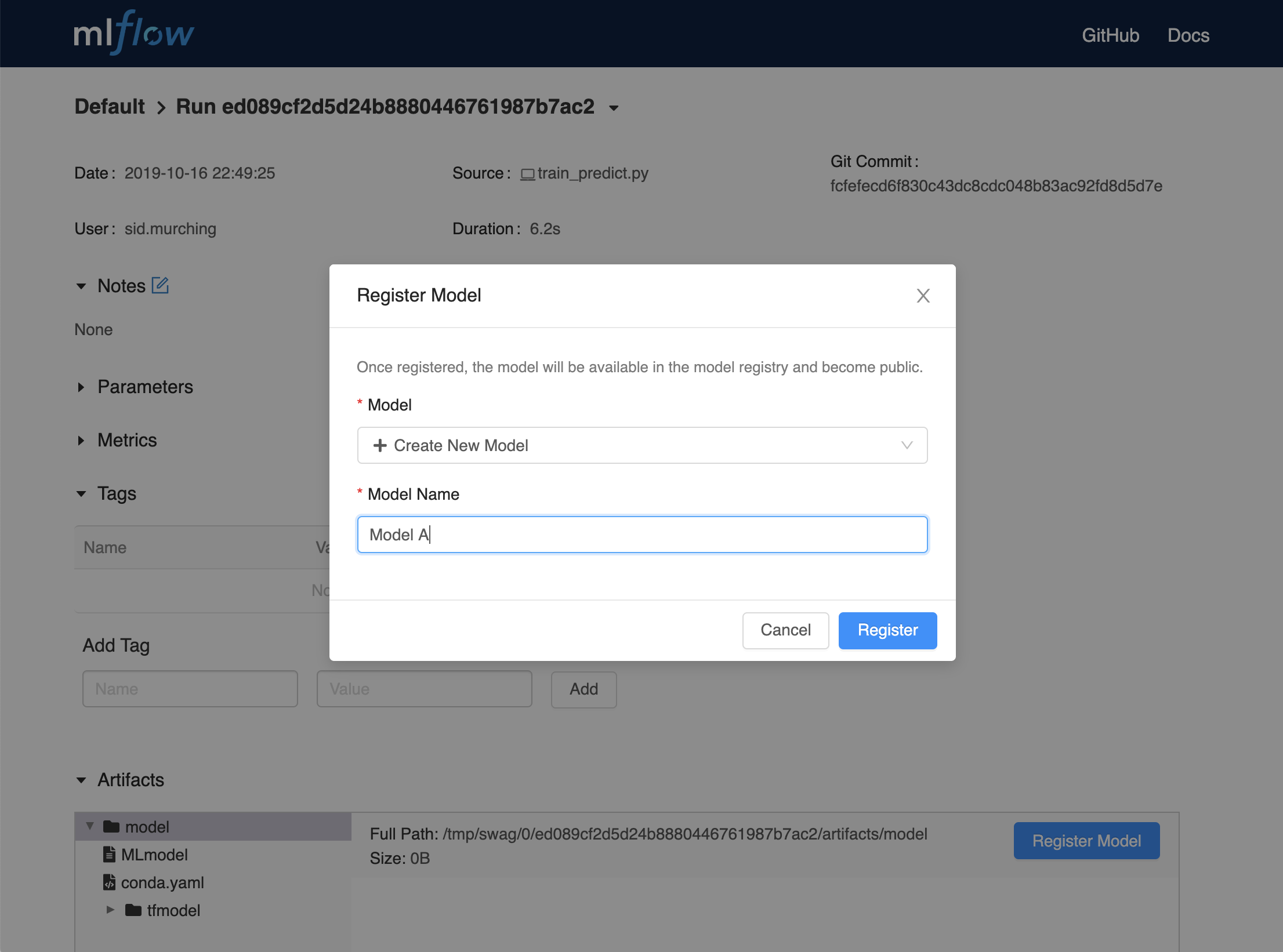

  1. From the MLflow Runs detail page, select a logged MLflow Model in the Artifacts section.

  2. Click the Register Model button.

  3. In the Model Name field, if you are adding a new model, specify a unique name to identify the model. If you are registering a new version to an existing model, pick the existing model name from the dropdown.


Using the Model Registry

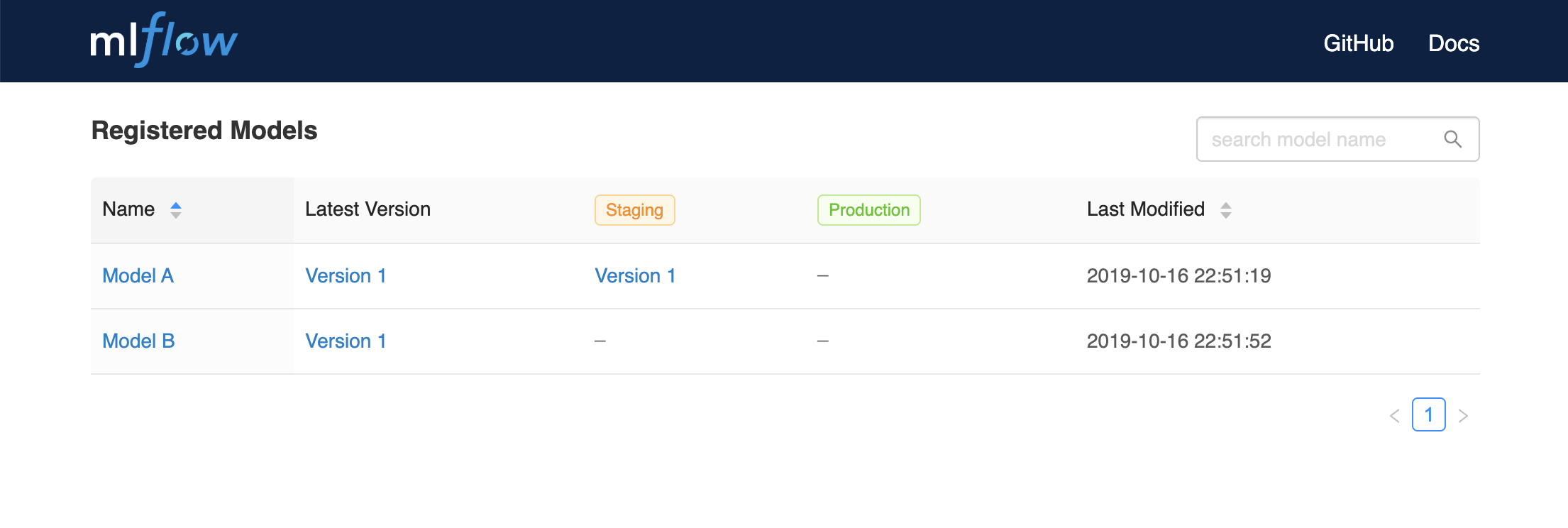

  • Navigate to the Registered Models page and view the model properties.

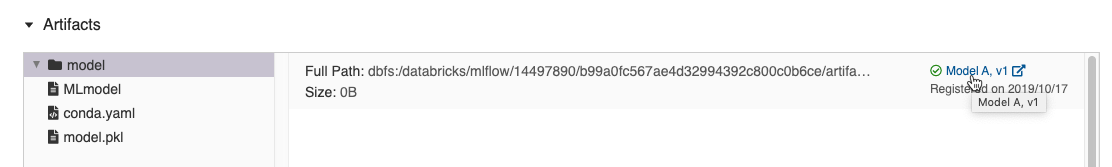

  • Go to the Artifacts section of the run detail page, click the model, and then click the model version at the top right to view the version you just created.

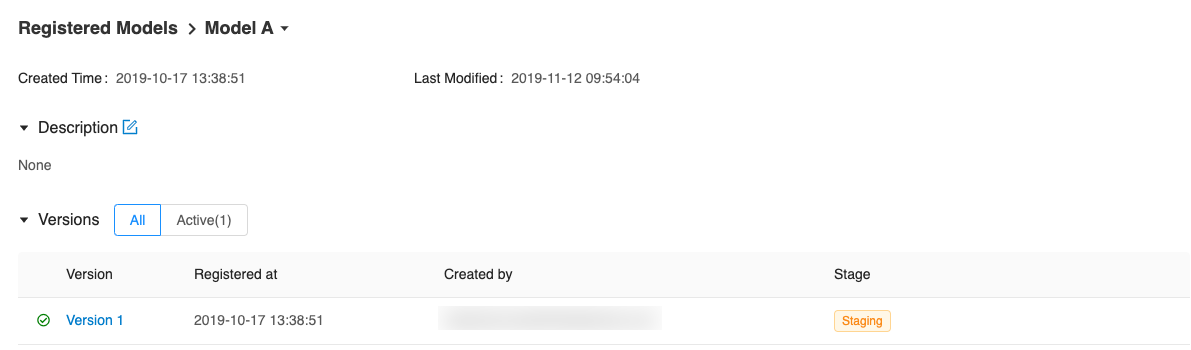

Each model has an overview page that shows the active versions.

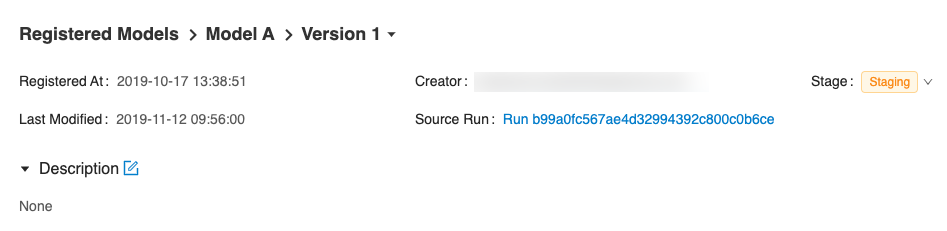

Click a version to navigate to the version detail page.

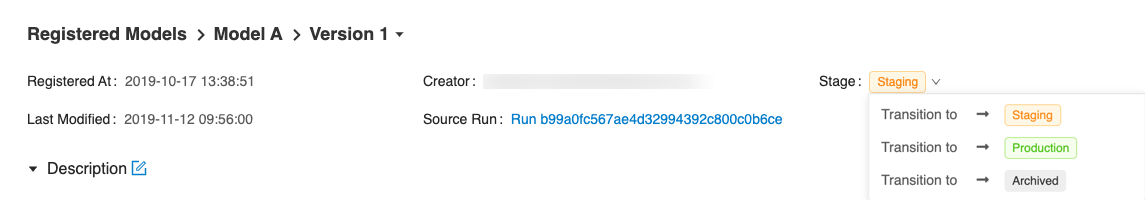

On the version detail page you can see model version details and the current stage of the model version. Click the Stage drop-down at the top right, to transition the model version to one of the other valid stages.


API Workflow

An alternative way to interact with Model Registry is using the MLflow model flavor or MLflow Client Tracking API interface. In particular, you can register a model during an MLflow experiment run or after all your experiment runs.

Adding an MLflow Model to the Model Registry

There are three programmatic ways to add a model to the registry. First, you can use the mlflow.<model_flavor>.log_model() method. For example, in your code:

from random import random, randint
from sklearn.ensemble import RandomForestRegressor

import mlflow
import mlflow.sklearn

with mlflow.start_run(run_name="YOUR_RUN_NAME") as run:
    params = {"n_estimators": 5, "random_state": 42}
    sk_learn_rfr = RandomForestRegressor(**params)

    # Log parameters and metrics using the MLflow APIs
    mlflow.log_param("param_1", randint(0, 100))
    mlflow.log_metrics({"metric_1": random(), "metric_2": random() + 1})

    # Log the sklearn model and register as version 1

In the above code snippet, if a registered model with the name doesn’t exist, the method registers a new model and creates Version 1. If a registered model with the name exists, the method creates a new model version.

The second way is to use the mlflow.register_model() method, after all your experiment runs complete and when you have decided which model is most suitable to add to the registry. For this method, you will need the run_id as part of the runs:URI argument.

result = mlflow.register_model(

If a registered model with the name doesn’t exist, the method registers a new model, creates Version 1, and returns a ModelVersion MLflow object. If a registered model with the name exists, the method creates a new model version and returns the version object.

And finally, you can use the create_registered_model() to create a new registered model. If the model name exists, this method will throw an MlflowException because creating a new registered model requires a unique name.

from mlflow import MlflowClient

client = MlflowClient()

While the method above creates an empty registered model with no version associated, the method below creates a new version of the model.

client = MlflowClient()
result = client.create_model_version(

Fetching an MLflow Model from the Model Registry

After you have registered an MLflow model, you can fetch that model using mlflow.<model_flavor>.load_model(), or more generally, load_model().

Fetch a specific model version

To fetch a specific model version, just supply that version number as part of the model URI.

import mlflow.pyfunc

model_name = "sk-learn-random-forest-reg-model"
model_version = 1

model = mlflow.pyfunc.load_model(


Fetch the latest model version in a specific stage

To fetch a model version by stage, simply provide the model stage as part of the model URI, and it will fetch the most recent version of the model in that stage.

import mlflow.pyfunc

model_name = "sk-learn-random-forest-reg-model"
stage = 'Staging'

model = mlflow.pyfunc.load_model(


Serving an MLflow Model from Model Registry

After you have registered an MLflow model, you can serve the model as a service on your host.

#!/usr/bin/env sh

# Set environment variable for the tracking URL where the Model Registry resides
export MLFLOW_TRACKING_URI=http://localhost:5000

# Serve the production model from the model registry
mlflow models serve -m "models:/sk-learn-random-forest-reg-model/Production"

Adding or Updating an MLflow Model Descriptions

At any point in a model’s lifecycle development, you can update a model version’s description using update_model_version().

client = MlflowClient()
    description="This model version is a scikit-learn random forest containing 100 decision trees"

Renaming an MLflow Model

As well as adding or updating a description of a specific version of the model, you can rename an existing registered model using rename_registered_model().

client = MlflowClient()

Transitioning an MLflow Model’s Stage

Over the course of the model’s lifecycle, a model evolves—from development to staging to production. You can transition a registered model to one of the stages: Staging, Production or Archived.

client = MlflowClient()

The accepted values for <stage> are: Staging|Archived|Production|None.

Listing and Searching MLflow Models

You can fetch a list of registered models in the registry with a simple method.

from pprint import pprint

client = MlflowClient()
for rm in client.search_registered_models():
    pprint(dict(rm), indent=4)

This outputs:

{   'creation_timestamp': 1582671933216,
    'description': None,
    'last_updated_timestamp': 1582671960712,
    'latest_versions': [<ModelVersion: creation_timestamp=1582671933246, current_stage='Production', description='A random forest model containing 100 decision trees trained in scikit-learn', last_updated_timestamp=1582671960712, name='sk-learn-random-forest-reg-model', run_id='ae2cc01346de45f79a44a320aab1797b', source='./mlruns/0/ae2cc01346de45f79a44a320aab1797b/artifacts/sklearn-model', status='READY', status_message=None, user_id=None, version=1>,
                        <ModelVersion: creation_timestamp=1582671960628, current_stage='None', description=None, last_updated_timestamp=1582671960628, name='sk-learn-random-forest-reg-model', run_id='d994f18d09c64c148e62a785052e6723', source='./mlruns/0/d994f18d09c64c148e62a785052e6723/artifacts/sklearn-model', status='READY', status_message=None, user_id=None, version=2>],
    'name': 'sk-learn-random-forest-reg-model'}

With hundreds of models, it can be cumbersome to peruse the results returned from this call. A more efficient approach would be to search for a specific model name and list its version details using search_model_versions() method and provide a filter string such as "name='sk-learn-random-forest-reg-model'"

client = MlflowClient()
for mv in client.search_model_versions("name='sk-learn-random-forest-reg-model'"):
    pprint(dict(mv), indent=4)

This outputs:

{   'creation_timestamp': 1582671933246,
    'current_stage': 'Production',
    'description': 'A random forest model containing 100 decision trees '
                   'trained in scikit-learn',
    'last_updated_timestamp': 1582671960712,
    'name': 'sk-learn-random-forest-reg-model',
    'run_id': 'ae2cc01346de45f79a44a320aab1797b',
    'source': './mlruns/0/ae2cc01346de45f79a44a320aab1797b/artifacts/sklearn-model',
    'status': 'READY',
    'status_message': None,
    'user_id': None,
    'version': 1}

{   'creation_timestamp': 1582671960628,
    'current_stage': 'None',
    'description': None,
    'last_updated_timestamp': 1582671960628,
    'name': 'sk-learn-random-forest-reg-model',
    'run_id': 'd994f18d09c64c148e62a785052e6723',
    'source': './mlruns/0/d994f18d09c64c148e62a785052e6723/artifacts/sklearn-model',
    'status': 'READY',
    'status_message': None,
    'user_id': None,
    'version': 2 }

Archiving an MLflow Model

You can move models versions out of a Production stage into an Archived stage. At a later point, if that archived model is not needed, you can delete it.

# Archive models version 3 from Production into Archived
client = MlflowClient()

Deleting MLflow Models


Deleting registered models or model versions is irrevocable, so use it judiciously.

You can either delete specific versions of a registered model or you can delete a registered model and all its versions.

# Delete versions 1,2, and 3 of the model
client = MlflowClient()
versions=[1, 2, 3]
for version in versions:
    client.delete_model_version(name="sk-learn-random-forest-reg-model", version=version)

# Delete a registered model along with all its versions

While the above workflow API demonstrates interactions with the Model Registry, two exceptional cases require attention. One is when you have existing ML models saved from training without the use of MLflow. Serialized and persisted on disk in sklearn’s pickled format, you want to register this model with the Model Registry. The second is when you use an ML framework without a built-in MLflow model flavor support, for instance, vaderSentiment, and want to register the model.

Registering a Saved Model

Not everyone will start their model training with MLflow. So you may have some models trained before the use of MLflow. Instead of retraining the models, all you want to do is register your saved models with the Model Registry.

This code snippet creates a sklearn model, which we assume that you had created and saved in native pickle format.


The sklearn library and pickle versions with which the model was saved should be compatible with the current MLflow supported built-in sklearn model flavor.

import numpy as np
import pickle

from sklearn import datasets, linear_model
from sklearn.metrics import mean_squared_error, r2_score

# source:

# Load the diabetes dataset
diabetes_X, diabetes_y = datasets.load_diabetes(return_X_y=True)

# Use only one feature
diabetes_X = diabetes_X[:, np.newaxis, 2]

# Split the data into training/testing sets
diabetes_X_train = diabetes_X[:-20]
diabetes_X_test = diabetes_X[-20:]

# Split the targets into training/testing sets
diabetes_y_train = diabetes_y[:-20]
diabetes_y_test = diabetes_y[-20:]

def print_predictions(m, y_pred):

    # The coefficients
    print('Coefficients: \n', m.coef_)
    # The mean squared error
    print('Mean squared error: %.2f'
          % mean_squared_error(diabetes_y_test, y_pred))
    # The coefficient of determination: 1 is perfect prediction
    print('Coefficient of determination: %.2f'
          % r2_score(diabetes_y_test, y_pred))

# Create linear regression object
lr_model = linear_model.LinearRegression()

# Train the model using the training sets, diabetes_y_train)

# Make predictions using the testing set
diabetes_y_pred = lr_model.predict(diabetes_X_test)
print_predictions(lr_model, diabetes_y_pred)

# save the model in the native sklearn format
filename = 'lr_model.pkl'
pickle.dump(lr_model, open(filename, 'wb'))
Mean squared error: 2548.07
Coefficient of determination: 0.47

Once saved in pickled format, we can load the sklearn model into memory using pickle API and register the loaded model with the Model Registry.

import mlflow

# load the model into memory
loaded_model = pickle.load(open(filename, 'rb'))

# log and register the model using MLflow scikit-learn API
reg_model_name = "SklearnLinearRegression"
mlflow.sklearn.log_model(loaded_model, "sk_learn",
Successfully registered model 'SklearnLinearRegression'.
2021/04/02 16:30:57 INFO mlflow.tracking._model_registry.client: Waiting up to 300 seconds for model version to finish creation.
Model name: SklearnLinearRegression, version 1
Created version '1' of model 'SklearnLinearRegression'.

Now, using MLflow fluent APIs, we reload the model from the Model Registry and score.

# load the model from the Model Registry and score
model_uri = f"models:/{reg_model_name}/1"
loaded_model = mlflow.sklearn.load_model(model_uri)

# Make predictions using the testing set
diabetes_y_pred = loaded_model.predict(diabetes_X_test)
print_predictions(loaded_model, diabetes_y_pred)
Mean squared error: 2548.07
Coefficient of determination: 0.47

Registering an Unsupported Machine Learning Model

In some cases, you might use a machine learning framework without its built-in MLflow Model flavor support. For instance, the vaderSentiment library is a standard Natural Language Processing (NLP) library used for sentiment analysis. Since it lacks a built-in MLflow Model flavor, you cannot log or register the model using MLflow Model fluent APIs.

To work around this problem, you can create an instance of a mlflow.pyfunc model flavor and embed your NLP model inside it, allowing you to save, log or register the model. Once registered, load the model from the Model Registry and score using the predict function.

The code sections below demonstrate how to create a PythonFuncModel class with a vaderSentiment model embedded in it, save, log, register, and load from the Model Registry and score.


To use this example, you will need to pip install vaderSentiment.

from sys import version_info
import cloudpickle
import pandas as pd

import mlflow.pyfunc
from vaderSentiment.vaderSentiment import SentimentIntensityAnalyzer

# Good and readable paper from the authors of this package

INPUT_TEXTS = [{'text': "This is a bad movie. You don't want to see it! :-)"},
           {'text': "Ricky Gervais is smart, witty, and creative!!!!!! :D"},
           {'text': "LOL, this guy fell off a chair while sleeping and snoring in a meeting"},
           {'text': "Men shoots himself while trying to steal a dog, OMG"},
           {'text': "Yay!! Another good phone interview. I nailed it!!"},
           {'text': "This is INSANE! I can't believe it. How could you do such a horrible thing?"}]

PYTHON_VERSION = "{major}.{minor}.{micro}".format(major=version_info.major,
def score_model(model):
# Use inference to predict output from the customized PyFunc model
for i, text in enumerate(INPUT_TEXTS):
    text = INPUT_TEXTS[i]['text']
    m_input = pd.DataFrame([text])
    scores = loaded_model.predict(m_input)
    print(f"<{text}> -- {str(scores[0])}")

# Define a class and extend from PythonModel
class SocialMediaAnalyserModel(mlflow.pyfunc.PythonModel):

    def __init__(self):
      # embed your vader model instance
      self._analyser = SentimentIntensityAnalyzer()

   # preprocess the input with prediction from the vader sentiment model
   def _score(self, txt):
      prediction_scores = self._analyser.polarity_scores(txt)
      return prediction_scores

   def predict(self, context, model_input):

      # Apply the preprocess function from the vader model to score
      model_output = model_input.apply(lambda col: self._score(col))
      return model_output

model_path = "vader"
reg_model_name = "PyFuncVaderSentiments"
vader_model = SocialMediaAnalyserModel()

# Set the tracking URI to use local SQLAlchemy db file and start the run
# Log MLflow entities and save the model

# Save the conda environment for this model.
conda_env = {
    'channels': ['defaults', 'conda-forge'],
    'dependencies': [
    'pip': [
    'name': 'mlflow-env'

# Save the model
with mlflow.start_run(run_name="Vader Sentiment Analysis") as run:
    model_path = f"{model_path}-{}"
    mlflow.log_param("algorithm", "VADER")
    mlflow.log_param("total_sentiments", len(INPUT_TEXTS))
    mlflow.pyfunc.save_model(path=model_path, python_model=vader_model, conda_env=conda_env)

# Use the saved model path to log and register into the model registry

# Load the model from the model registry and score
model_uri = f"models:/{reg_model_name}/1"
loaded_model = mlflow.pyfunc.load_model(model_uri)
Successfully registered model 'PyFuncVaderSentiments'.
2021/04/05 10:34:15 INFO mlflow.tracking._model_registry.client: Waiting up to 300 seconds for model version to finish creation.
Created version '1' of model 'PyFuncVaderSentiments'.

<This is a bad movie. You don't want to see it! :-)> -- {'neg': 0.307, 'neu': 0.552, 'pos': 0.141, 'compound': -0.4047}
<Ricky Gervais is smart, witty, and creative!!!!!! :D> -- {'neg': 0.0, 'neu': 0.316, 'pos': 0.684, 'compound': 0.8957}
<LOL, this guy fell off a chair while sleeping and snoring in a meeting> -- {'neg': 0.0, 'neu': 0.786, 'pos': 0.214, 'compound': 0.5473}
<Men shoots himself while trying to steal a dog, OMG> -- {'neg': 0.262, 'neu': 0.738, 'pos': 0.0, 'compound': -0.4939}
<Yay!! Another good phone interview. I nailed it!!> -- {'neg': 0.0, 'neu': 0.446, 'pos': 0.554, 'compound': 0.816}
<This is INSANE! I can't believe it. How could you do such a horrible thing?> -- {'neg': 0.357, 'neu': 0.643, 'pos': 0.0, 'compound': -0.8034}
