Query Traces
This page describes how to query traces logged to MLflow in both UI and API.
- Filtering Traces on UI
- Filtering Traces on API

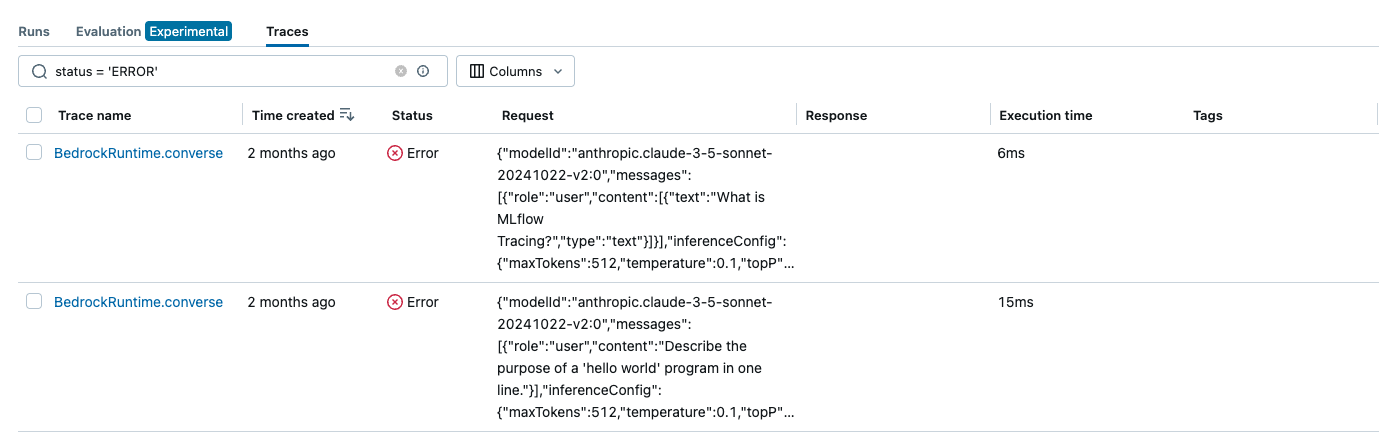

Use the search box in the MLflow Trace UI to filter traces by various criteria.
The mlflow.search_traces()
API allows you to programmatically search for traces across experiments:
import mlflow
# Search traces in the current experiment
traces = mlflow.search_traces(filter_string="status = 'ERROR'")
# Search traces in specific experiments
traces = mlflow.search_traces(
experiment_ids=["experiment_id_1", "experiment_id_2"],
filter_string="name = 'predict'",
)
See the Filter Syntax section below for more details on filtering options.
Filter Syntax​
The filter_string
argument allows you to create powerful search queries using a SQL-like syntax. Here are the most common filter patterns:
Filter by Name​
Search for traces by their name:
mlflow.search_traces(filter_string="trace.name = 'predict'")
Filter by Timestamp​
Search traces created within a specific time range:
# Get traces created after a specific timestamp (in milliseconds)
timestamp = int(time.time() * 1000)
mlflow.search_traces(
filter_string=f"trace.timestamp > {timestamp - 3600000}" # Last hour
)
Filter by Status​
Search for traces by their execution status:
# Get successful traces
mlflow.search_traces(filter_string="trace.status = 'OK'")
# Get failed traces
mlflow.search_traces(filter_string="trace.status = 'ERROR'")
Trace status must be one of ["OK", "ERROR", "IN_PROGRESS"]
.
Filter by Tags​
Filter traces that have specific tag values:
mlflow.search_traces(filter_string="tag.model_name = 'gpt-4'")
Combine Multiple Conditions​
Combine multiple filters using logical operators:
mlflow.search_traces(filter_string="trace.status = 'OK' AND tag.importance = 'high'")
Find Traces associated with an MLflow Run​
- UI
- API
To view traces associated with a specific run:
- Navigate to the run details page
- Click on the "Traces" tab to see all traces associated with that run
Use the run_id
parameter to search for traces associated with a specific run:
import mlflow
# Search traces associated with a specific run
traces = mlflow.search_traces(run_id="run_id_123456")
Searching Traces via API​
This section provides a detailed guide on using the mlflow.search_traces()
API for programmatic trace retrieval.
First, let's create some sample traces to demonstrate the search functionality:
import time
import mlflow
from mlflow.entities import SpanType
# Define methods to be traced
@mlflow.trace(span_type=SpanType.TOOL, attributes={"time": "morning"})
def morning_greeting(name: str):
time.sleep(1)
mlflow.update_current_trace(tags={"person": name})
return f"Good morning {name}."
@mlflow.trace(span_type=SpanType.TOOL, attributes={"time": "evening"})
def evening_greeting(name: str):
time.sleep(1)
mlflow.update_current_trace(tags={"person": name})
return f"Good evening {name}."
@mlflow.trace(span_type=SpanType.TOOL)
def goodbye():
raise Exception("Cannot say goodbye")
# Execute the methods within different experiments
morning_experiment = mlflow.set_experiment("Morning Experiment")
morning_greeting("Tom")
# Get the timestamp in milliseconds
morning_time = int(time.time() * 1000)
evening_experiment = mlflow.set_experiment("Evening Experiment")
experiment_ids = [morning_experiment.experiment_id, evening_experiment.experiment_id]
evening_greeting("Mary")
goodbye()
Return Types​
The mlflow.search_traces()
API can return results in two formats, controlled by the return_type
parameter:
# Default: Return as Pandas DataFrame
trace_df = mlflow.search_traces(experiment_ids=[morning_experiment.experiment_id])
# Return as list of Trace objects
trace_list = mlflow.search_traces(
experiment_ids=[morning_experiment.experiment_id], return_type="list"
)
The return_type
parameter is only available in MLflow version 2.21.1 and later. If you are using an older version, the mlflow.search_traces()
API will always return a Pandas DataFrame. To get a list of Trace objects, you can use the MlflowClient.search_traces()
API instead.
DataFrame Schema​
When using return_type="pandas"
(default), the returned DataFrame includes these columns:
- request_id: A primary identifier of a trace
- trace: A trace object
- timestamp_ms: The start time of the trace in milliseconds
- status: The status of the trace
- execution_time_ms: The duration of the trace in milliseconds
- request: The input to the traced logic
- response: The output of the traced logic
- request_metadata: Key-value pairs associated with the trace
- spans: Spans in the trace
- tags: Tags associated with the trace
Order Traces​
You can order the search results using the order_by
parameter:
mlflow.search_traces(
experiment_ids=experiment_ids, order_by=["timestamp_ms DESC"] # Most recent first
)
Pass multiple columns to the order_by
parameter to sort by multiple fields:
mlflow.search_traces(
experiment_ids=experiment_ids, order_by=["timestamp_ms DESC", "status ASC"]
)
Unpack Span Fields into DataFrame​
When using the DataFrame return type, you can extract specific fields from spans into separate columns using the extract_fields
parameter:
traces = mlflow.search_traces(
extract_fields=[
# Extract the "name" field in the "morning_greeting" span inputs
"morning_greeting.inputs.name",
# Extract all output fields in the "morning_greeting" span
"morning_greeting.outputs",
],
experiment_ids=[morning_experiment.experiment_id],
)
print(traces)
The output Pandas DataFrame will contain additional columns for the extracted span fields:
request_id ... morning_greeting.inputs.name morning_greeting.outputs
0 053adf2f5f5e4ad68d432e06e254c8a4 ... 'Tom' 'Good morning Tom.'
This feature is particularly useful for creating evaluation datasets:
eval_data = traces.rename(
columns={
"morning_greeting.inputs.name": "inputs",
"morning_greeting.outputs": "ground_truth",
}
)
results = mlflow.evaluate(
model,
eval_data,
targets="ground_truth",
model_type="question-answering",
)
The extract_fields
parameter is only supported when using return_type="pandas"
.
Pagination​
For large result sets, use the MlflowClient.search_traces()
API for pagination:
from mlflow import MlflowClient
client = MlflowClient()
page_token = None
while True:
results = client.search_traces(
experiment_ids=experiment_ids,
page_token=page_token,
max_results=100, # Number of results per page
)
# Process the current page of results
for trace in results:
# Do something with each trace
print(trace.request_id)
# Check if there are more pages
if not results.token:
break
page_token = results.token
